4-Channel Viewing
Supports CAM1-CAM4 with single, split and quad display modes and automatic trigger display.
Supply + Installation

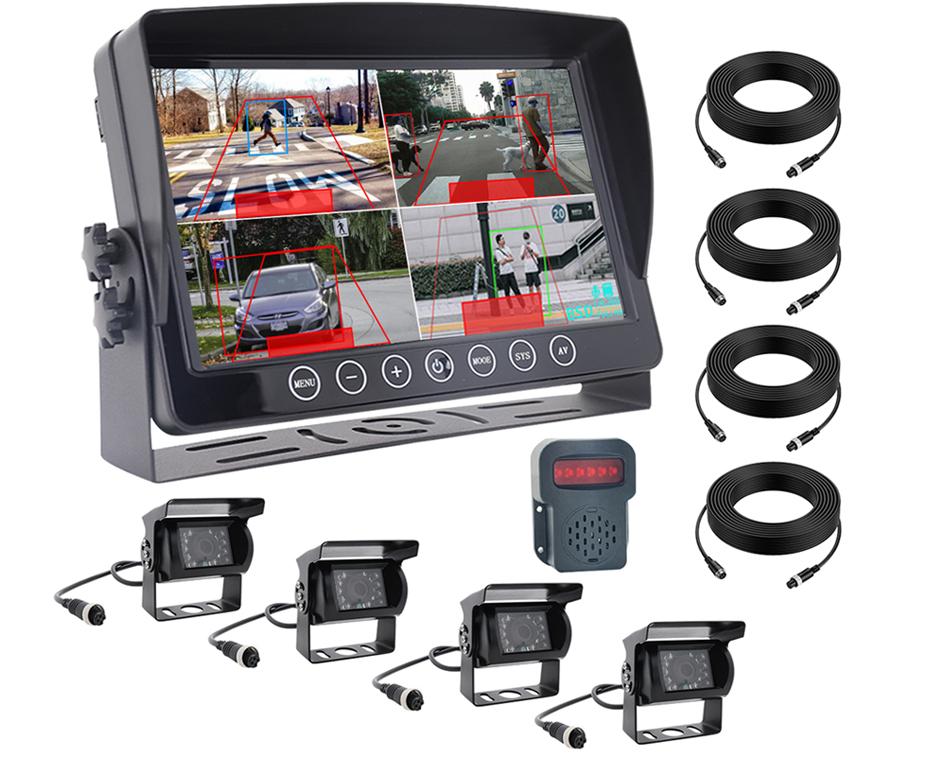

HD 4CH Waterproof Monitor AI System
Seismic supplies and installs this smart AI-based camera and advanced tracking solution for vehicles, fleets, industrial facilities and Oil & Gas field applications. The system combines multi-camera visibility, DVR recording, Blind Spot Detection (BSD), configurable detection and driver-assistance functions.
AI / BSDUp to 4 CamerasIP68DVR RecordingPeople + Vehicle Detection
System Capabilities
Designed for visibility, recording and intelligent driver assistance.
BSD Smart Drive
Configurable blind-spot alarm areas, alarm sound and High / Mid / Low sensitivity settings.
Intelligent Identification
Identification modes for CAR, PEOPLE and PEOPLE + CAR for smarter monitoring.
DVR Recording
Loop recording with 1- or 2-minute clips, playback controls and support for 8GB-128GB TF cards.
Parking & Trigger Support
Switchable parking guide lines, multiple reversing-line patterns and configurable trigger delay.
Industrial Applications
Suitable for fleets, heavy vehicles, industrial operations, surveillance and Oil & Gas field camera requirements.
Technical Specifications
Monitor and camera specifications.
7-inch IPS Monitor
- 1024(H) × 600(V) AHD resolution
- NTSC / PAL support
- Up to 4 cameras
- Contrast 800:1
- Brightness 600 cd/m²
- DC 9-35V power supply
- Approx. 9W consumption
- IP68 waterproof rating
- Operating: -20°C to 70°C
Camera
- 1/3 CMOS image sensor
- 1280×720P / 1920×1080P
- 120° horizontal / 170° diagonal view
- PAL / NTSC
- IP68 waterproof rating
- DC 12V depending on configuration
- Operating: -20°C to +70°C
- Storage: -30°C to +80°C
One-year product warranty

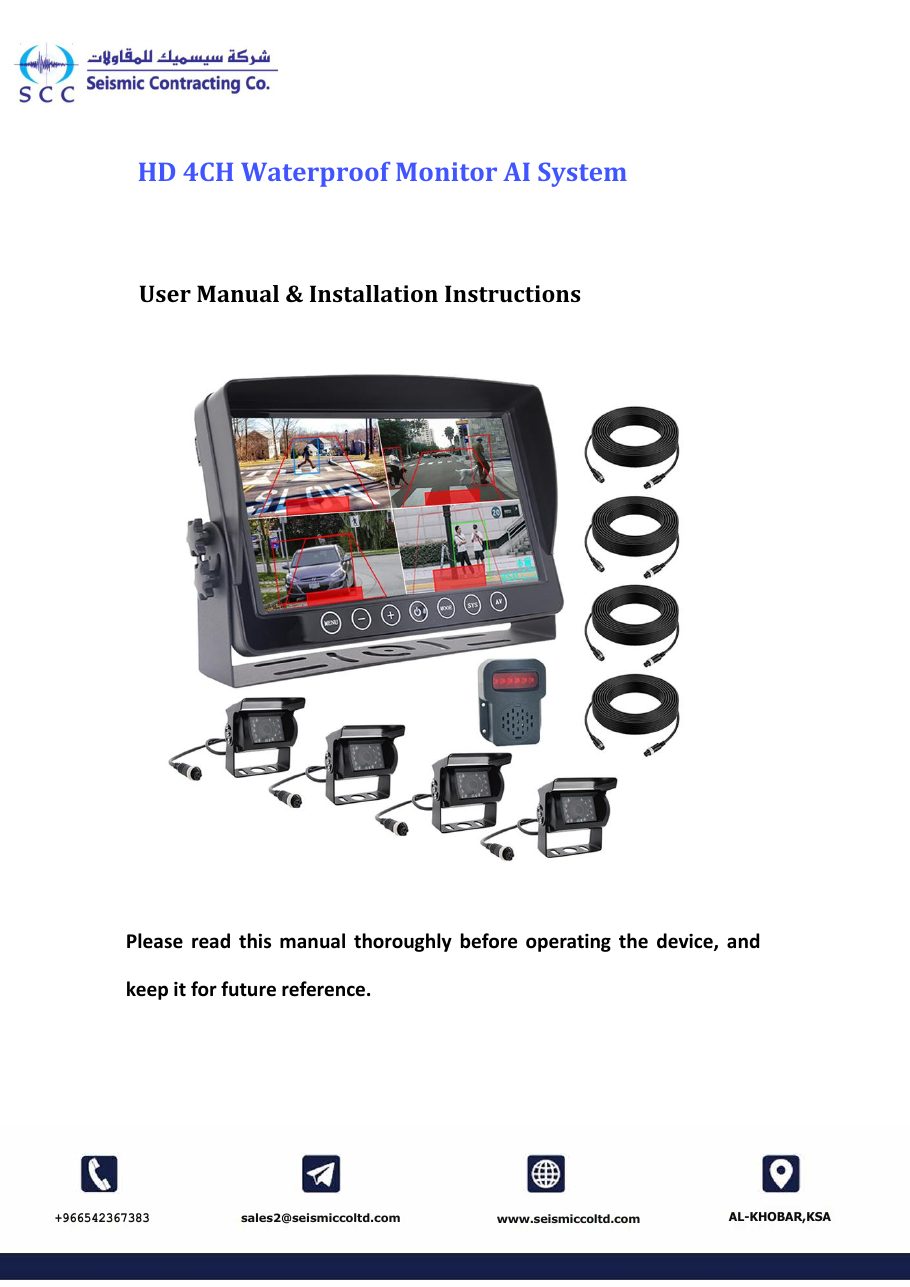

The supplied manual specifies a one-year warranty against material defects, subject to its stated installation, misuse and alteration exclusions.
